Home 1991 Chevrolet K2500 Pickup Cheyenne 6.2L V8 - Diesel Carrier & Front Axles

Carrier & Front Axles for 1991 Chevrolet K2500 Pickup

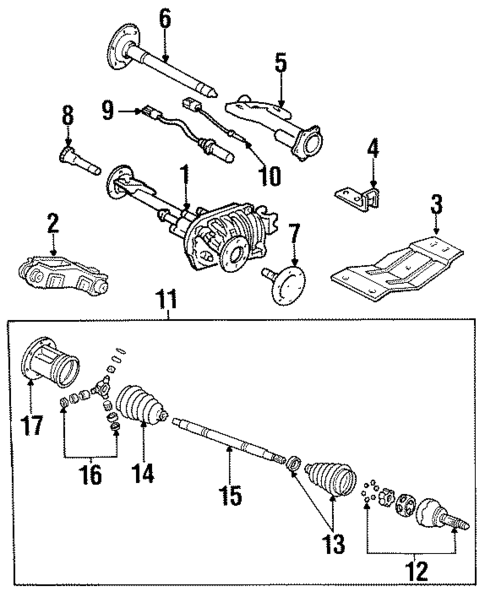

Carrier & Front Axles for 1991 Chevrolet K2500 Pickup #0

1

1

10

10

11

11

12

12

13

13

14

14

15

15

16

16

17

17

2

2

3

3

4

4

5

5

6

6

7

7

8

8

9

9

No.

Part # / Description / Price

Price

1

15572988 - Suspension: Axle Housing for GM Image

Axle Housing

GM

Notes: PARTS: Order by model and vehicle GVRW.

Description: All. Standard. 4wd.

2

15592502 - Suspension: Mount Bracket for GM Image

Mount Bracket

GM

Notes: PARTS: Order by model and vehicle GVRW.

Description: 4wd, 1/2 ton. 4wd, 3/4 ton, gvw 7200. 4wd, 5.7L. 4wd. 1500 & 2500.

3

15538494 - Suspension: Shield for GM Image

Shield

GM

Description: 4wd, differential.

4

15567534 - Suspension: Shield Bracket for GM Image

Shield Bracket

GM

Description: 4wd.

5

26033235 - Suspension: Housing for GM Image

Axle Housing

GM

Notes: PARTS: Order by model and vehicle GVRW.

Description: All models. Heavy duty. Under 7500 gvw. Standard. 4wd, 3/4 ton, 7200 gvwr.

6

26006822 - Suspension: Inner Shaft for GM Image

Output Shaft

GM

Positions: Right

Notes: PARTS: Order by model and vehicle GVRW.

Description: All models. Under 7500 gvw. Right. 4wd, 1500 & 2500. 4wd, 1/2 ton. 4wd, outer.

7

26006824 - Suspension: Inner Shaft for GM Image

Output Shaft

GM

Positions: Left

Notes: PARTS: Order by model and vehicle GVRW.

Description: All models. Under 7500 gvw. Left. 4wd, 1500 & 2500. 4wd, 1/2 ton. 4wd, outer.

8

19121908 - Suspension: Inner Shaft for GM Image

Front Drive Axle Clutch Shaft

GM

Notes: PARTS: Order by model and vehicle GVRW.

Description: This GM Genuine Part is designed, engineered, and tested to rigorous standards and is backed by General Motors

MSRP $357.16

$252.44

MSRP $357.16

$252.44

9

26013495 - Suspension: Switch for GM Image

Switch

GM

Description: 4wd, shift. 4WD. actuator. Exc.Square Plug.

10

15638264 - Suspension: Switch for GM Image

Switch

GM

Description: 4wd, indicator, 2500 & 3500. 4wd, engagement, 3/4 ton, 8600 gvwr.

11

26062613 - Suspension: Axle Assembly for GM Image

Axle Assembly

GM

Positions: Right

Notes: PARTS: Order by model and vehicle GVRW.

Description: All. Standard. 4wd.

12

26037371 - Suspension: C.V Joint for GM Image

C.V Joint

GM

Positions: Right

Notes: PARTS: Order by model and vehicle GVRW.

Description: All models. Under 7500 gvw. Astro, Safari. 4wd, 5.7L.
CV Joint Kit.

MSRP $589.06

$359.33

MSRP $589.06

$359.33

13

26037370 - Suspension: Outer Boot for GM Image

Outer Boot

GM

Positions: Right

Notes: PARTS: Order by model and vehicle GVRW.

Description: All models. Under 7500 gvw. Astro, Safari. 4wd, 5.7L.

14

26036985 - Suspension: Inner Boot for GM Image

Inner Boot

GM

Positions: Left

Notes: PARTS: Order by model and vehicle GVRW.

Description: 4wd, 1/2 ton. 4wd, 1500. 4wd, 5.7L. Vendor:acdelco. Vendor #36-1193. Gvw 7,200 lbs..

15

7849300 - Suspension: Shaft for GM Image

Shaft

GM

Positions: Left

Description: All models. Under 7500 gvw. 4wd, 1/2 ton. 4wd, 1500 & 2500. Vendor:acdelco. Vendor #36-3324. 4wd, 5.7L.

16

26037152 - Suspension: Spider Assembly for GM Image

Spider Assembly

GM

Positions: Right

Notes: PARTS: Order by model and vehicle GVRW.

Description: 4wd, 1500 & 2500. All models. Under 7500 gvw. 4wd, 1/2 ton. 4wd, 5.7L.

17

26013864 - Suspension: Housing for GM Image

Tripot Housing

GM

Positions: Right

Notes: PARTS: Order by model and vehicle GVRW.

Description: 4wd, 1500 & 2500. All models. Under 7500 gvw. 4wd, 1/2 ton. 4wd, 5.7L.
