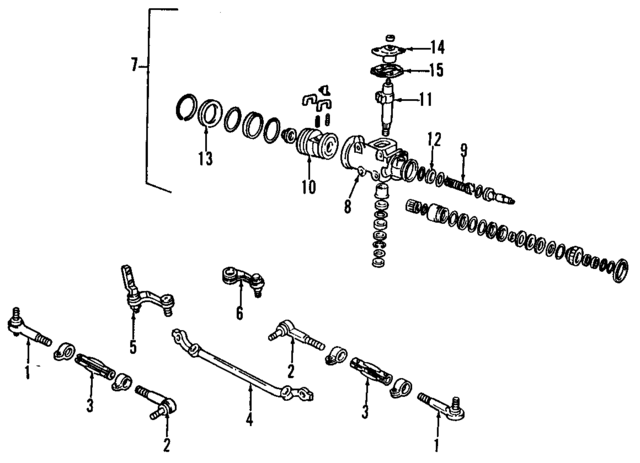

Steering Gear & Linkage for 1997 Chevrolet Suburban C2500
No.
Part # / Description / Price
Price
N/A
Steering Gear Rack Seal Kit
GM
GM Description: Piston cylinder seal kit. All. G10-30 vans. Express, savana. Pick-up. Hummer H2. Rack & piston seal kit. This GM Genuine Part is designed, engineered, and tested to rigorous standards and is backed by General Motors
Rack and Pinion Seal Kit.
Rack and Pinion Seal Kit.
N/A
Steering Gear Valve Seal Kit GM
GM Description: This GM Genuine Part is designed, engineered, and tested to rigorous standards and is backed by General Motors
Steering Gear Seal Kit.
Steering Gear Seal Kit.
MSRP $64.05
$45.99
MSRP $64.05
$45.99
N/A
Pitman Shaft Seal GM
GM Description: Express, savana. 4wd. All models. 1/2 ton. With silverado, sierra. Without crew cab. 2wd. Hummer H2.
N/A
Power Steering Fluid Cooler GM
GM Notes: Order By Description. Parts & Prices For Estimating Only.
Description: All models. With hd cooling, with hd cooling. 6.2L diesel. 7.4L. 6.5L diesel. 5.0 & 5.7L, 5.7L, 2wd. 5.0 & 5.7L, 5.0L. This GM Genuine Part is designed, engineered, and tested to rigorous standards and is backed by General Motors
A stand alone cooler used to cool the power steering system.
A stand alone cooler used to cool the power steering system.
N/A
Seal Kit GM
GM Notes: Order By Description. Parts & Prices For Estimating Only.
Description: All models. Adjusting plug seal kit. Pick-up. Without 6.2l diesel.
N/A
Multi-Purpose Seal 2 GM
GM Description: This GM Genuine Part is designed, engineered, and tested to rigorous standards and is backed by General Motors
Not For Sale
Not For Sale
1
Outer Tie Rod GM
GM Description: All models. 2wd. 4wd. Express, savana. Exc.gvw 15,000 lbs. 1/2, 3/4 & 1 ton, 1996 new style,.
2
Inner Tie Rod GM
GM Description: All models. 2wd without 15,000 gvwr. Express, savana. Exc.gvw 15,000 lbs. 1/2, 3/4 & 1 ton, 1996 new style,.
4
Center Link GM
GM Notes: Order By Description. Parts & Prices For Estimating Only.
Description: All models. 5.7L, 2wd. Exc.gvw 15,000 lbs.
5
Idler Arm GM
GM Notes: Order By Description. Parts & Prices For Estimating Only.
Description: All models. 4wd. Exc.gvw 15,000 lbs.
6
Pitman Arm GM
GM Notes: Order By Description. Parts & Prices For Estimating Only.
Description: All models. Exc.gvw 15,000 lbs.
7
Steering Gear Box GM
GM Notes: Order By Description. Parts & Prices For Estimating Only.
Description: 2wd without 15,000 gvwr, all. All models. 2500 series. All models. 1500 series. 4wd, all. 2wd, 3/4 ton. 4wd, 1/2 ton. 2wd, 1/2 ton. Gvw 7,200 lbs.
10
MSRP $313.14
$221.32
11
Pitman Shaft GM
GM Notes: Order By Description. Parts & Prices For Estimating Only.
Description: All models. Pick-up.
12
Steering Gear Worm Gear Thrust Bearing GM
GM Description: Upper. G10-30 vans. Lower. Express, savana. Caballero, El Camino. This GM Genuine Part is designed, engineered, and tested to rigorous standards and is backed by General Motors
MSRP $65.57
$47.11
MSRP $65.57
$47.11
14
Steering Gear Housing Cover GM
GM Description: G10-30 vans. 4wd. All. Express, savana. 3/4 ton, 8500 & 8600 gvw, 1 ton. 2500 series. 2wd. 2 wheel drive 3/4, 1 ton. 2003-07. This GM Genuine Part is designed, engineered, and tested to rigorous standards and is backed by General Motors
Is used to close off and seal the inside of the Steering Gear Box. Some provide a place for adjustment of the Sector Shaft
Is used to close off and seal the inside of the Steering Gear Box. Some provide a place for adjustment of the Sector Shaft
MSRP $101.42
$71.68
MSRP $101.42
$71.68
15
Steering Gear Housing Cover Gasket GM
GM Description: All models. 2wd with 15,000 gvwr. 4wd. Express, savana. 3/4 ton, 8500 & 8600 gvw, 1 ton. 2500 series. Housing cover. 2 wheel drive 3/4, 1 ton. 2003-07. Gear side cover seal kit. This GM Genuine Part is designed, engineered, and tested to rigorous standards and is backed by General Motors
MSRP $47.22
$33.92
MSRP $47.22
$33.92
2 This part contains hazardous materials. Extra shipping costs apply.
No.
Part # / Description / Price
Price
1
Outer Tie Rod GM
GM Positions: Left
Description: All models. 2wd. 4wd. Express, savana. Exc.gvw 15,000 lbs. 1/2, 3/4 & 1 ton, 1996 new style,.
8
Gear Assembly GM
GM Description: 2wd without 15,000 gvwr, all. 4wd, 3/4 ton. Gvw 8,600 lbs. All models. 3500 series. 2wd, 1/2 ton. 4wd, 1/2 ton. Exc.gvw 15,000 lbs.
No.
Part # / Description / Price
Price
2
Inner Tie Rod GM
GM Positions: Right
Description: All models. 2wd without 15,000 gvwr. Express, savana. Exc.gvw 15,000 lbs. 1/2, 3/4 & 1 ton, 1996 new style,.
7
Steering Gear Box GM
GM Description: 2wd without 15,000 gvwr, all. All models. 2500 series. All models. 1500 series. 4wd, all. 2wd, 3/4 ton. 4wd, 1/2 ton. 2wd, 1/2 ton. Gvw 7,200 lbs.
Related Parts
Part # / Description / Price
Price
Idler Arm Housing GM
GM Description: 2wd, shaft kit. 4WD. idler arm. 2WD without 15,000 GVWR. idler arm.
Steering Gear Rack Kit GM
GM Description: This GM Genuine Part is designed, engineered, and tested to rigorous standards and is backed by General Motors
