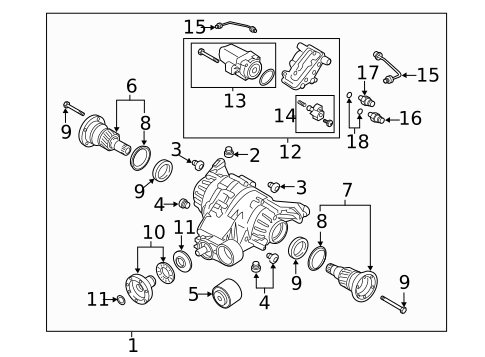

Axle & Differential for 2020 Audi S8
No.
Part # / Description / Price
Price
1
Differential
Audi
Audi Notes: PARTS: Part has related component that cannot be reused/reinstalled; axle bolt.
Description:
Device connecting Drive Shaft to Axle Shafts that allows for varied speeds of wheel rotation.
Device connecting Drive Shaft to Axle Shafts that allows for varied speeds of wheel rotation.
1
Differential Assembly Audi
Audi Notes: PARTS: Part has related component that cannot be reused/reinstalled; axle bolt.
Description: With torque vectoring, code: tvn.
1
Differential Assembly Audi
Audi Notes: PARTS: Part has related component that cannot be reused/reinstalled; axle bolt.
Description: With torque vectoring, code: tvm. RS6 Avant. RS7 Sportback.
2
Differential Vent Hose Audi
Audi Notes: PARTS: Part included with differential assembly.
Description: 8 speed tranmission, with torque vectoring, upper. Type 1. 3.0L, with torque vectoring, upper.
Differential Vent Hose.
Differential Vent Hose.
3
Differential Vent Hose Audi
Audi Notes: PARTS: Part included with differential assembly.
Description:
Differential Vent Hose.
Differential Vent Hose.
MSRP $27.23
$18.46
MSRP $27.23
$18.46
4
Differential Assembly Front Bolt Audi
Audi Notes: PARTS: Order by description. Part included with differential assembly. Part cannot be reused/reinstalled.
Description: Code mkl or mkv. With code mkv or mzw. With code mkv or mku. Convertible, 3.0L, with torque vectoring. Coupe, 2.0L. A7, 2.0L. S7, without torque vectoring. Convertible, with awd, 3.0L, with code mkx.
MSRP $3.06
$2.07
MSRP $3.06
$2.07
5
Differential Housing Insulator Audi
Audi Notes: PARTS: Part included with differential assembly.
Description: 2017-21. 2.0L plug-in hybrid. Convertible, 2.0L, 2018-20. 7 speed tranmission, 2.0L. With torque vectoring.
Differential Housing Insulator.
Differential Housing Insulator.
MSRP $52.78
$35.20
MSRP $52.78
$35.20
6
Drive Axle Shaft Audi
Audi Positions: Right
Notes: PARTS: Part included with differential assembly.
Description:
A bare drive axle shaft for a drive axle assembly, used on vehicles that utilize dependent suspension systems.
A bare drive axle shaft for a drive axle assembly, used on vehicles that utilize dependent suspension systems.
MSRP $634.65
$479.80
MSRP $634.65
$479.80
6
Drive Axle Shaft Audi
Audi Positions: Rear right
Description: 4.0L with torque vectoring. SQ8. Right. RS Q8. RS6 avant. RS7 sportback.
A bare drive axle shaft for a drive axle assembly, used on vehicles that utilize dependent suspension systems.
A bare drive axle shaft for a drive axle assembly, used on vehicles that utilize dependent suspension systems.
7
Drive Axle Shaft Audi
Audi Positions: Left
Notes: PARTS: Part included with differential assembly.
Description:
A bare drive axle shaft for a drive axle assembly, used on vehicles that utilize dependent suspension systems.
A bare drive axle shaft for a drive axle assembly, used on vehicles that utilize dependent suspension systems.
7
Drive Axle Shaft Audi
Audi Positions: Rear left
Description: 4.0L with torque vectoring. SQ8. Left. RS Q8. RS6 avant. RS7 sportback.
A bare drive axle shaft for a drive axle assembly, used on vehicles that utilize dependent suspension systems.
A bare drive axle shaft for a drive axle assembly, used on vehicles that utilize dependent suspension systems.
8
Stub Shaft Seal Audi
Audi Positions: Right
Description: Code mkl or mkv. With code mkv or mzw. With code mkv or mku. A8 Quattro. S8. Rs 5. With awd with sport differential. Protector. 3.0L.
9
Stub Shaft Seal Kit Audi
Audi Positions: Left
Description: Active Differential. SQ5 Sportback. S6. RS5. Convertible, 3.0L, with torque vectoring. Coupe, 2.9 or 3.0L, with torque vectoring.
10
Couple & Flange Audi
Audi Notes: PARTS: Part included with differential assembly.
Description: SQ7. SQ8. With torque vectoring. RS Q8. RS6 Avant. RS7 Sportback.
11
Couple & Flange Seal Kit Audi
Audi Notes: PARTS: Part included with differential assembly.
Description: SQ7. SQ8. With torque vectoring. RS Q8. RS6 Avant. RS7 Sportback. Active Differential.
MSRP $81.64
$65.35
MSRP $81.64
$65.35
12
Differential Lock Motor Audi
Audi Notes: PARTS: Part included with differential assembly.
Description: With torque vectoring.
Differential Lock Motor.
Differential Lock Motor.
13
Differential Lock Motor Audi
Audi Notes: PARTS: Part included with actuator.
Description: Code mkl or mkv. With code mkv or mzw. With code mkv or mku. Motor. 3.0L.
Differential Lock Motor.
Differential Lock Motor.
14
Parking Brake Actuator Seal Kit Audi
Audi Notes: PARTS: Part included with actuator.
Description: With awd, with sport differential. Code mkl or mkv. With code mkv or mku. Solenoid. 3.0L.
A kit that contains all necessary seals to install or repair the parking brake motor.
A kit that contains all necessary seals to install or repair the parking brake motor.
15
Tube Assembly Audi
Audi Notes: PARTS: Part included with differential assembly.
Description: With awd, with sport differential. Code mkl or mkv, code mkv. With code mkv or mzw. With code mkv or mku. S7, with torque vectoring. With torque vectoring, tubing. 3.0L.
MSRP $250.00
$190.50
MSRP $250.00
$190.50
16
Differential Oil Temperature Sensor Audi
Audi Notes: PARTS: Part included with actuator.
Description: 2.9L, with torque vectoring, front. Black.
Differential Oil Temperature Sensor.
Differential Oil Temperature Sensor.
17
Differential Oil Temperature Sensor Audi
Audi Notes: PARTS: Part included with actuator.
Description: 2.9L, with torque vectoring, rear. Brown.
Differential Oil Temperature Sensor.
Differential Oil Temperature Sensor.
18
Engine Coolant Temperature Sensor O-Ring Audi
Audi Notes: PARTS: Part included with differential assembly.
Description: 2.9L, with torque vectoring.
Engine Coolant Temperature Sensor O-Ring.
Engine Coolant Temperature Sensor O-Ring.
MSRP $4.00
$2.71
MSRP $4.00
$2.71
Related Parts
Part # / Description / Price
Price
Stub Shaft Seal Kit Audi
Audi Positions: Rear
Description: SQ7. With torque vector. SQ8. RS Q8. RS6 Avant. RS7 Sportback. Active Differential.
